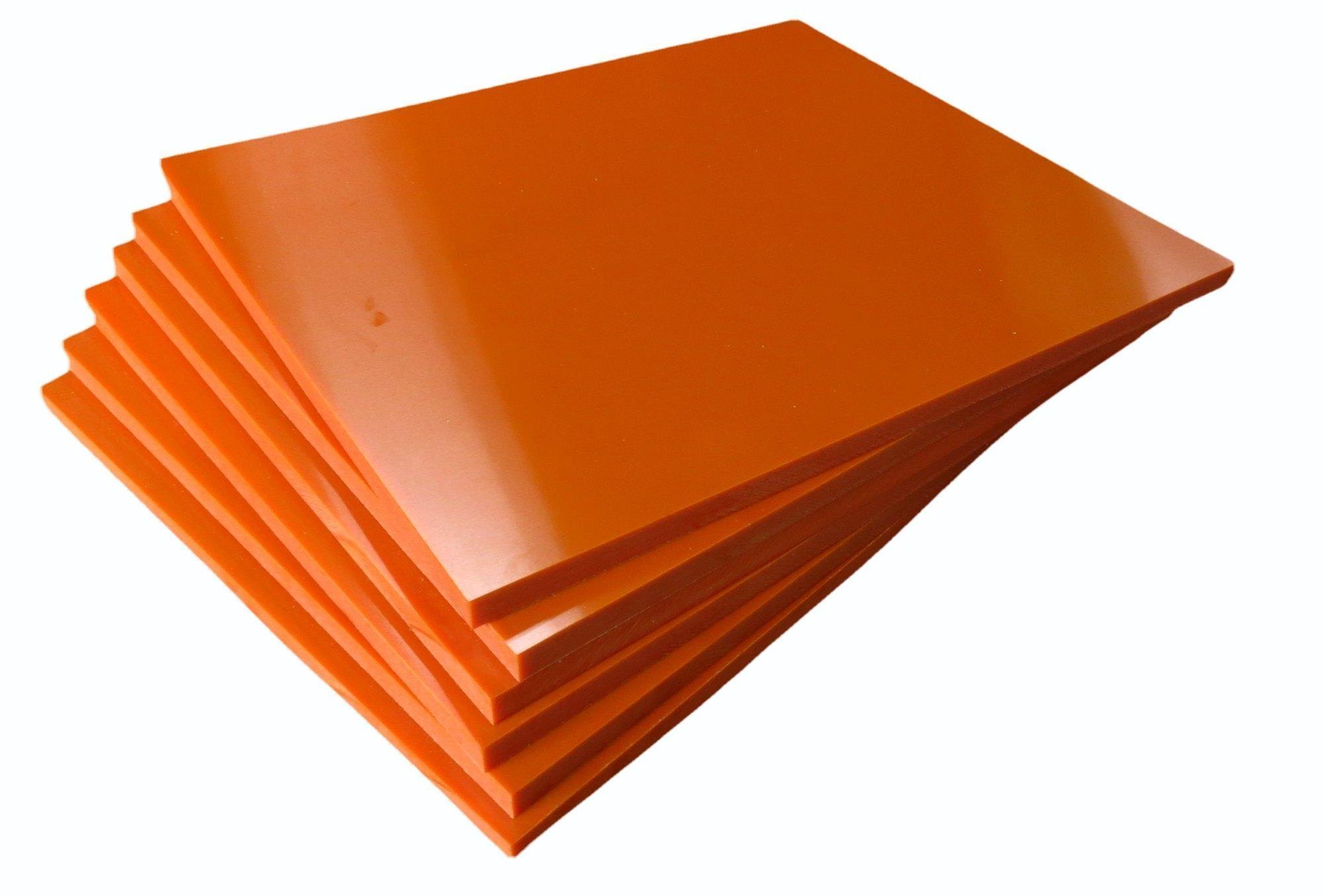

PHENOLIC PAPER SHEETS
Product Description
Phenolic Paper Sheets & Rods are cost-effective, rigid, and electrically insulating thermoset laminates produced by impregnating high-quality cellulose paper with phenolic resin under heat and pressure.
The result is a strong, lightweight, and machinable material that offers:
- Excellent electrical insulation for low & medium voltage applications
- Moderate mechanical strength for structural and support components
- Cost-effectiveness compared to fabric or glass laminates
They are widely used in switchgear, transformers, control panels, and general insulation applications where cost and electrical performance are critical.
Main Benefits
- Excellent electrical insulation properties
- Lightweight yet rigid material
- More economical than fabric/glass laminates
- Good machinability (cutting, drilling, turning)
- Moderate mechanical strength (sufficient for insulation & support)
- Stable dimensions under normal load
- Heat resistance: continuous up to 105–120°C
- Resistant to oils, waxes, and many solvents
Available in
Sheets (Laminates)
- Thickness: 0.5 mm – 100 mm
- Standard Sizes: 1220×2440 mm
Custom Machined Parts
Washers, Spacers, Insulating panels
Typical Application
Electrical & Electronics
- Switchgear & panel boards
- Transformer & motor insulation parts
- Terminal boards, fuse carriers, base plates
- Insulating spacers, washers & control panel parts
Industrial & Mechanical
- Jigs & fixtures requiring insulation
- Support plates, covers, liners
- Low-load machine components
Other Uses
- Appliances insulation
- Cost-effective substitute for higher-grade laminates in light-duty use.
| Property | Value |
|---|---|
| Density | 1.3 – 1.4 g/cm³ |
| Tensile Strength | 60 – 90 MPa |
| Flexural Strength | 100 – 150 MPa |
| Compressive Strength | 150 – 200 MPa |
| Heat Resistance | 105 – 120 °C |
| Electrical Breakdown | 9 – 12 kV/mm |
