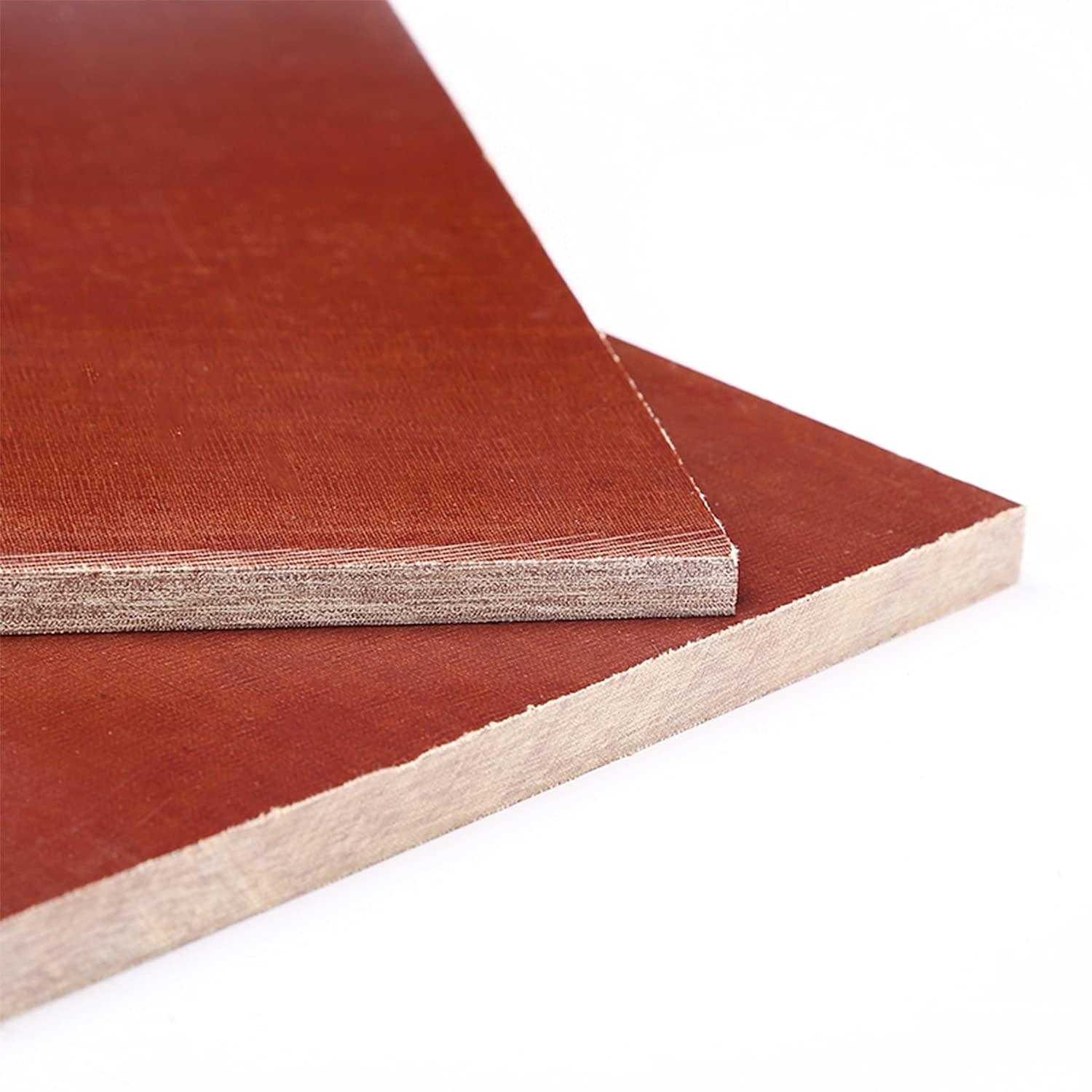

PHENOLIC FABRIC SHEETS & RODS
Product Description
Phenolic Fabric Sheets & Rods are high-strength, wear-resistant, and electrically insulating composite materials made by impregnating layers of cotton fabric with phenolic resin under high pressure and temperature. This results in a dense, rigid, and durable material that combines:
- The strength and wear resistance of cotton fabric
- The chemical, electrical, and thermal resistance of phenolic resin
They are widely used in industries requiring high mechanical strength, impact resistance, low friction, and long-term durability.
Available in
Sheets (Laminates)
- Thickness: 1 mm – 100 mm (custom on request)
- Standard Sizes: 1000×1000 mm / 1220×1220 mm / 2000×1000 mm
Rods
- Diameter: 10 mm – 300 mm
- Length: 1000 mm (custom available)
Machined Parts
Bushings, bearings, CNC-turned profiles
Typical Application
Industrial & Mechanical
- • Bearings, bushings, thrust washers
- • Gears, sprockets, pulleys
- • Wear plates, rollers, cams
- • Clutch & brake components
General Engineering
- • Machine tool guides
- • Hydraulic & pneumatic sealing parts
- • Support rings and spacers
Electrical & Electronics
- • Insulating components
- • Transformer & motor slot wedges
- • Terminal boards & switchgear
Automotive & Transport
- • Brake linings & clutch plates
- • Shock & vibration damping parts
| Property | Description |
|---|---|
| Density | 1.35 - 1.45 g/cm³ |
| Tensile Strength | 100 - 150 MPa |
| Flexural Strength | 160 - 250 MPa |
| Compressive Strength | 250 - 300 MPa |
| Impact Strength | 8 - 15 kJ/m² |
| Heat Resistance | 120 - 140 °C |
| Electrical Breakdown | 10 - 15 kV/mm |
