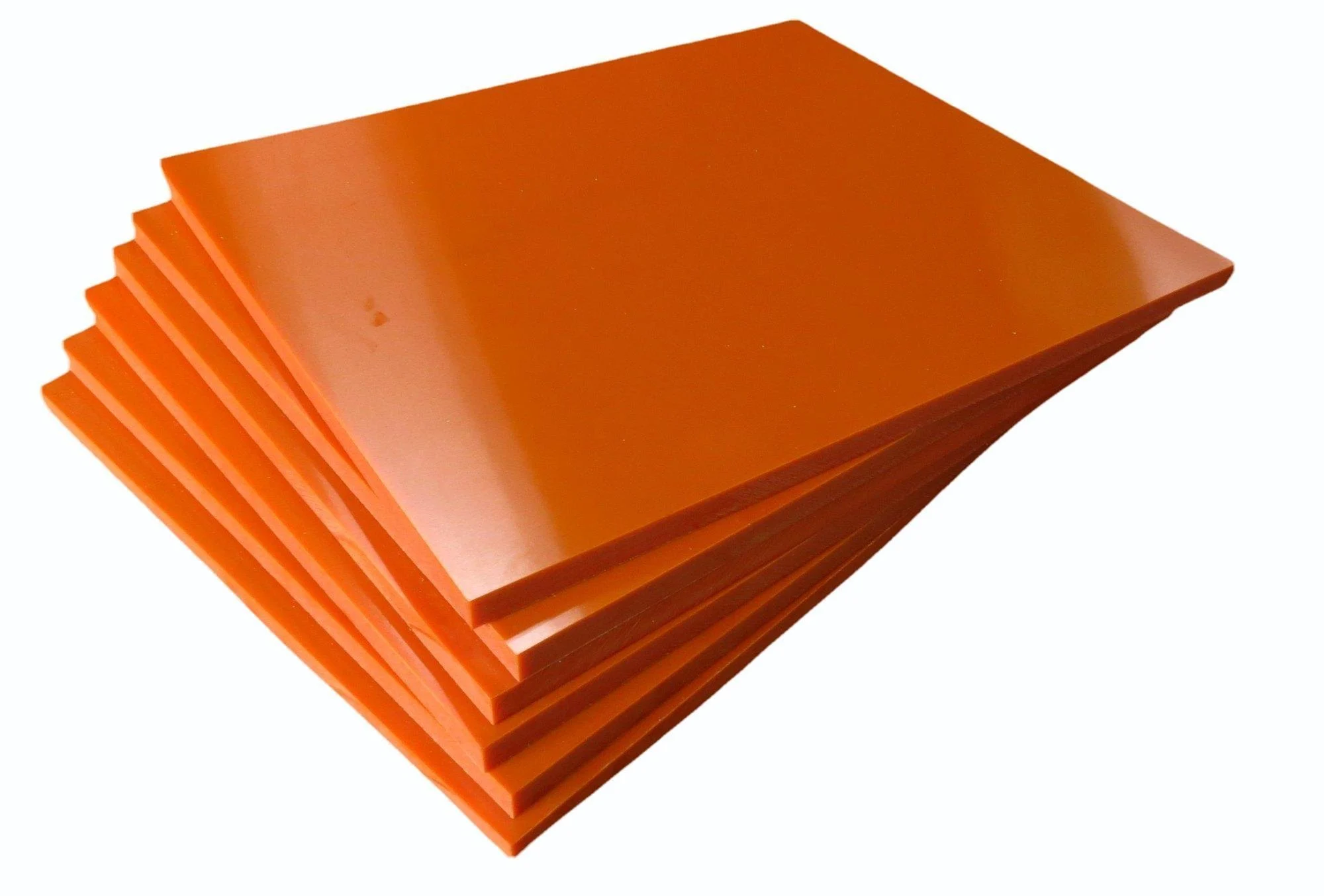

BAKELITE SHEETS (PHENOLIC LAMINATES)
Bakelite (Phenolic Laminates) is one of the earliest thermosetting plastics ever invented. It is manufactured by impregnating layers of paper or fabric with phenolic resin and curing them under heat and high pressure. The result is a rigid, tough, and durable laminate with excellent electrical insulation, good heat resistance, and strong mechanical properties.
Today, Bakelite Sheets & Rods are widely used in electrical, electronic, industrial, and consumer applications.
Main Benefits
- • Excellent electrical insulation
- • Heat resistance up to 130-150°C
- • Strong compressive & flexural strength
- • Easy machinability & durable
- • Lightweight and rigid
- • Moisture & chemical resistance
Available in
- • Sheets: 0.5mm to 100mm thickness
- • Sizes: 1000x1000, 1220x1220, 2000x1000 mm
- • Rods: 10mm to 150mm dia
- • Custom machined parts & washers
Typical Application
- Electrical & Electronics:
- Switchgear panels & insulators
- Transformer & Gen insulation
- Terminal boards & fuse bases
- Consumer Applications:
- Cooker handles & appliance panels
- Industrial Uses:
- Machine parts requiring strength
- Support blocks, gaskets & spacers
- Jigs & fixtures in mfg lines
- Tool handles & knobs
Products
Sheets
Rods
Square Rods
Profiles
Product Characteristics
Specifications
| Test Method | Unit | Typical Values |
|---|---|---|
| Vertical Bending Strength | MPa | ≥ 100 |
| Grain Strength | N | ≥ 2800 |
| Vertical Electrical Strength | Kv/mm | 5.7 - 12.2 |
| Parallel Layer Breakdown Voltage | KV | ≥ 15 |
| Parallel Layer Insulation Resistance (Normal) | Ω | ≥ 1.0x109 |
| Parallel Layer Insulation Resistance (After Tide) | Ω | ≥ 1.0x107 |
| Water Suction Column | mg | 190 - 480 |
| Heat Resistance Grade | - | B (130°C) |
