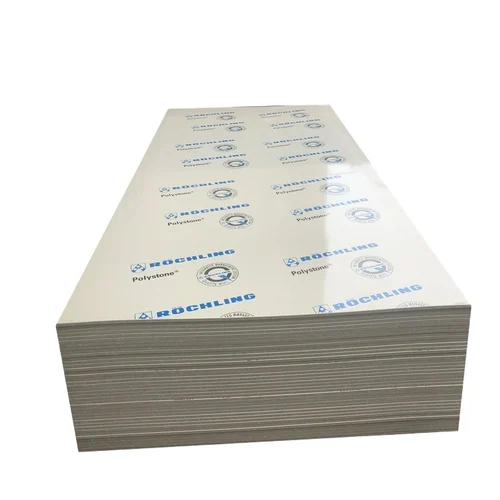

POLYPROPYLENE SHEETS & RODS
Product Description
Polypropylene (PP) is light, strong and has resistance to chemicals and has a low friction surface, all of which make it ideal as a replacement for wood or metal which are the materials traditionally used. PP is a high corrosion resistant material, which exhibits excellent tensile strength and stiffness at elevated temperatures.
Features
- • Excellent electrical insulation
- • Chemical Resistance
- • Moisture barrier
- • High elongation
Sizes Available
- • Sheet Thickness: from 1mm to 150mm
- • Sizes available: 1mt x 2mt, 1.22mt x 2.44mt, 1.2mt x 2mt, 1.5mt x 3mt
- • Squares available: from 16mm sq to 150mm sq
- • Profiles available: as per customer requirement
Typical Application
- Acid tank & vessel linings
- Component carrier for storage
- Racks
- Etching machines & rinse tubs
- Fans
- Flange
- Fume hoods & ducts
- Metal plating Barrels
- Orthopedic equipments
- Plating modules
- Processing Equipments
- Scrub stations & Scrubbers
- Storage tanks
- Tank covers
- Wall & ceiling
- Claddings
Products
Sheets & Rods
Thick Boards
Ortho Sheets
Square & Profiles
Mechanical Properties
Thermal Performance
Electrical Performance
| Performance & Test Conditions | Test Method | Unit | Typical Values |
|---|---|---|---|
| Notched impact strength of cantilever beam, 23°C | ASTM D256 | J/m² | 35 |
| Yield tensile strength, 23°C, 50mm/min | ASTM D638 | MPa | 29 |
| Elongation at break, 23°C, 50mm/min | ASTM D638 | % | 300 |
| The bending strength, 23°C, 2mm/min | ASTM D790 | MPa | 35 |
| Bending modulus, 23°C, 2mm/min | ASTM D790 | MPa | 1030 |
| Shore hardness D | ASTM D2240 | - | 80 |
| The Density | ISO 1183 | g/cm³ | 0.910 |
